Item Specifics:
Is_customized : Yes
Brand Name : Noyafa
Model Number : NF-8601
Place of Origin : Shenzhen.China
Port : RJ45, RJ11, BNC, PING/POE
Test length : RJ11,RJ45 ,BNC
Tracking Type : RJ45, RJ11, BNC and Metal Cable
Power : 3.7V lithium battery
Warranty : 1 Year
Main function:
1. PoE / PING testing.
2. Trace targeted cable among lots of unknown cables ;
3. Locate faults for RJ11/RJ45/BNC Cable;
4. measure cable length accurately
5. Voltage detecting function.
6. Memory and storage function, export or upload the data from PC.
7. Lithium battery and color screen
Application:
1. 3.7V lithium battery power supply ,Convenient and durable.
2. 2.8 inches LCD Color screen ,Clear, intuitive and personalization.
3. can save and export 160 groups of data to computer (txt. format).
| Technical indexes: |
| NF-8601 Transmitter specifications |
| Indictor |
LCD 320x240 mm, with backlight |
| Cable test types |
STP/UTP 5E,6E network , telephone , coaxial cable. |
| Max. distance of wiremap |
2000 m |
| Max. distance of tracing |
2000m |
| Max. distance of cable length |
1000 m |
| Min. distance of calibration |
10 m |
| Accuracy |
3% ( after calibration ) |
| Compatible connectors |
RJ11，RJ45,Coaxial, PING/POE,BNC |
| Cable map indication |
LCD (#1-#8) |
| Battery Type |
3.7V lithium battery 1800mAh |
| Work temperature / humidity |
10℃ ~ -60℃ / 0℃~70℃ |
| Dimension(LxWxD) |
173x92x34mm |
| NF-8601 Receiver specifications |
| Cable hunting |
RJ11，RJ45, BNC |
| Types of cable |
≥ 2 cores |
| Battery Type |
3.7V lithium battery 1800mAh |
| Dimension(LxWxD) |
183x58x35 mm |
| NF-8601 Remote unit specifications |
| Compatible connectors |
RJ11，RJ45, BNC |
|
Dimension(LxWxD)

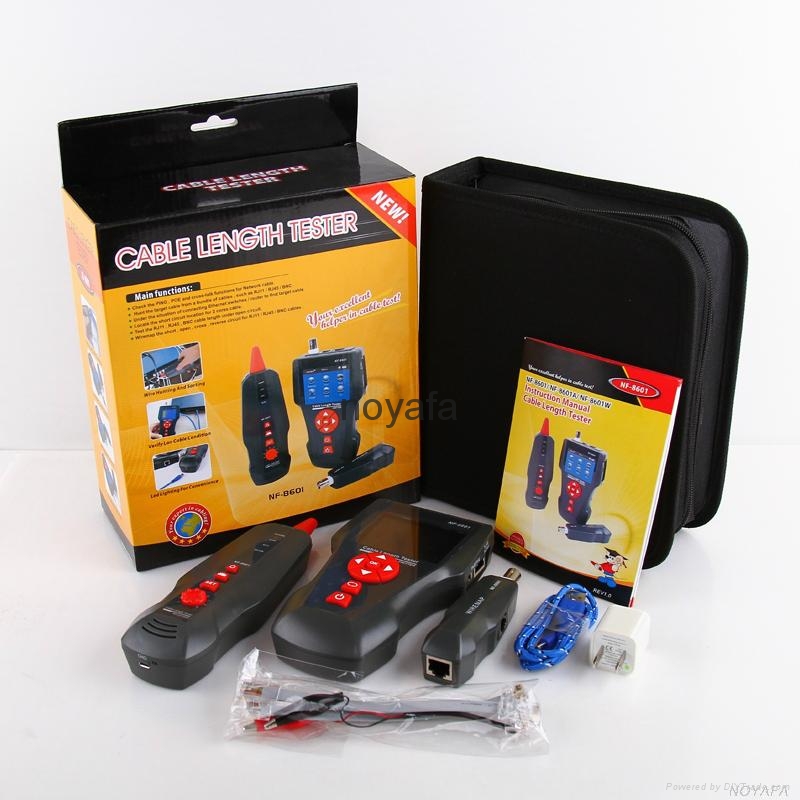

Accessories Included:
Bulit-in battery x 2 set
Adapted telephone line x 1 set
Adapted network cable x 1 set
Cable clips x 1 set
Charging adaptor x 1 set
Toolkit x 1 set
|
106x32x30mm
|
