Item Specifics:
Is_customized : Yes
Brand Name : Noyafa

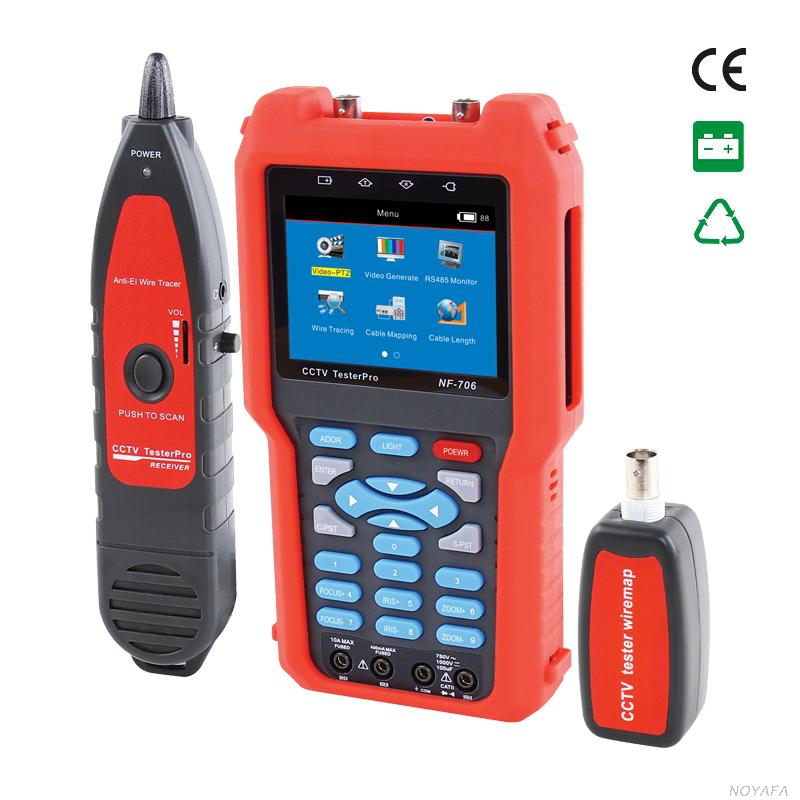

Model Number : NF-706
Place of Origin : Shenzhen.China
Main function: Analog & CVBS Signal, cable tester tracker
Wiremap Type: RJ45, BNC Cable
Tracking Type : RJ45, BNC and Metal Cable
Length Type: RJ45, BNC Cable
Other functons: Multimeter
Power : Lithium battery
Main Features:
1. SD video formats NTSC/PAL Automatically adapt and display formats.
2. PTZ control . Pan/tilts the P/T unit, zooms in/out the lens,adjust the focus, aperture and sets and call the preset position.
3. Video signal analysis, by analyzing the sync level measure video signal amplitude attenuation.
4. Input Audio signal,test pickups and microphone audio signal.
5. The PAL/NTSC multi-system color bar video generator
6. 485 Control Interface .Support Baud Rates with 2400/ 4800/ 9600 .
7. Multi-Protocol . Support more than 20 kinds PTZ protocol, such as PELCD-D, PELCD-P,SAMSUNG,MINKING etc .
8. Date analyst. Captures and analyzes RS 485 controlling date to help the technician to find out the problem.
9. multimeter functions, DC & AC voltage / Resistance / Continuity measurement .
10. Check open,short,cross reverse wiremap for RJ45 and BNC cable, results shows on the display.
11. Trace and locate RJ45 BNC and other metal cables.
12. Test cables when open circuit . Measure cable length for BNC.Max length 620m .
Benefits:
1. Chinese and English can be selected.
2. 3.5 TFT-LCD,960(H) x 240(V) resolution
3. TFT-LCD Screen brightness, contrast, color saturation is adjustable
4. Anti-jamming ,free noise ,capable of working in the exchanger and PC startup .
5. Locate breakage point accurately.
6. Low battery alarm function: when main voltage <3.4v or Receiver voltage <6v.
7. Function of storage and memory .
8. Large-capacity high-performance lithium battery-powered, rechargeable.
Specification:
| Category |
Discription |
| Video Test |
Signal Mode |
NTSC/PAL automatically suitable |
| Display |
3.5 inch TFT LCD color screen,960x240 resolution |
| Analog Video Input |
Analog Video Input |
| Video Output |
Video Signal Output |
| PTZ Control and Test |
Communication |
RS485 |
| protocol |
Include PELCD-D, PELCD-P,SAMSUNG,MINKING 20 kinds of protocols or customized |
| Baud Rate |
2400 /4800/ 9600 |
| Multi-meter Function |
DC Voltage Test |
Max:1000v,Precision:0.1v |
| AC Voltage Test |
Max:750v,Precision:0.1v |
| DC Current Test |
Max:10A,Precision:0.1mA |
| AC Current Test |
Max:10A,Precision:0.1mA |
| Diode Test |
Diode Test |
| Resistance Test |
Max:40MΩ,Precision:0.1Ω |
| Continuity Test |
Continuity Test |
| 12 V power output |
Output voltage |
DC12 V |
| Output current |
Max:1000mA |
| Other Function |
Video Analyzing |
Through the analysis of synchronous level signal attenuation amplitude |
| Video Signal |
Independently output 1channel analog video signal |
| Cable test |
Check cable open,short, cross connection |
| Hunting test |
Hunting the target cable in lots of unknown cables |
| Measurement cable length |
Measurement cable length when open |
| RS485 protocol test |
Test the RS485 data sent from controlling device |
| Signal Generating |
Output 1channel video signal for testing monitor |
| Others |
The power converter |
DC5V/1A |
| Battery |
3000mAh rechargeable Large capacity lithium battery inside |
| Work Temperature |
﹣30°c ﹣70°c |
| Work Humidity |
30%-90% |
| The size of Indictor and remote |
Indictor:206*112*49mm |
| Remote:107*30*24mm |
| The size of receiver |
218*46*29mm |
Accessories:
| Emitter |
1 pcs |
| Receiver |
1 pcs |
| Remote |
1 pcs |
| silicon rubber case |
1 pcs |
| DC5v charging & Wiring |
1 pcs |
| 3.7v lithium battery |
1 pcs |
| 9v Carbon battery |
1 pcs |
| Multimeter pen |
1 pcs |
| BNC cable |
1 pcs |
| Audio cable |
1 pcs |
| 485 control cable |
1 pcs |
| Hang rope |
1 pcs |
| Camera power supply cable |
1 pcs |
| Certificate of approval |
1 pcs |
| User manual |
1 pcs |
| Color box |
1 pcs |
| Toolkit |
1 pcs |
