Item Specifics:
Is_customized: Yes
Brand Name: Noyafa
Model Number: NF-198
Place of Origin: Shenzhen.China
Detect range:0-999999.9 meter
Color: Red + Gray
Measuring errors : 1-3 meter
Power:3.7V x 2 battery ( included)
Warranty: 1Year

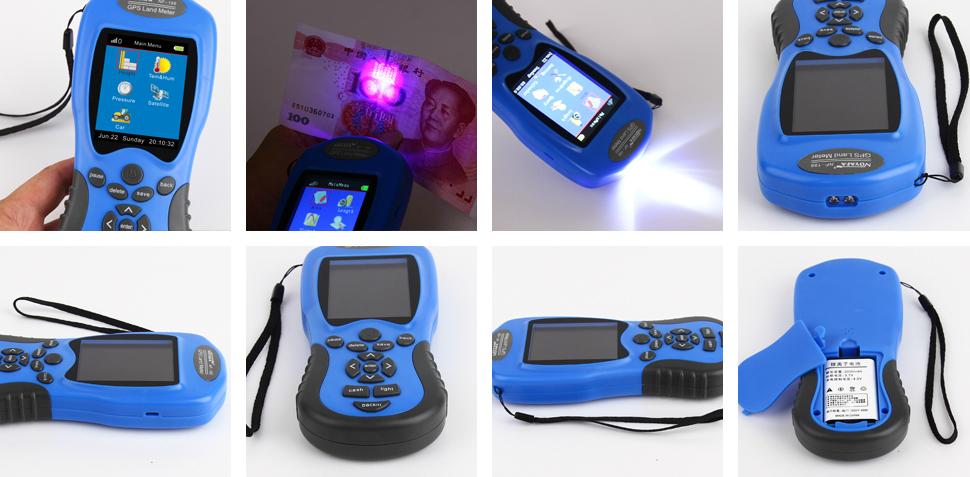

Main Features:
1.Measure area and length of any shape (containing mountainous land, slope and flat field).
2.Can display measuring value, figure track and automatically calculate price after measurement.
3.Vehicle-carrier measurement, distance can be adjusted according to needs.
4.Test data , Graphics trajectory can be exported for printing.
5.Applicable google map shows real graphics trajectory
6.2.8 inch large color screen that makes more clear and visually.
7.Efficient startup: 30sec for cold boot, 3sec for warm boot.

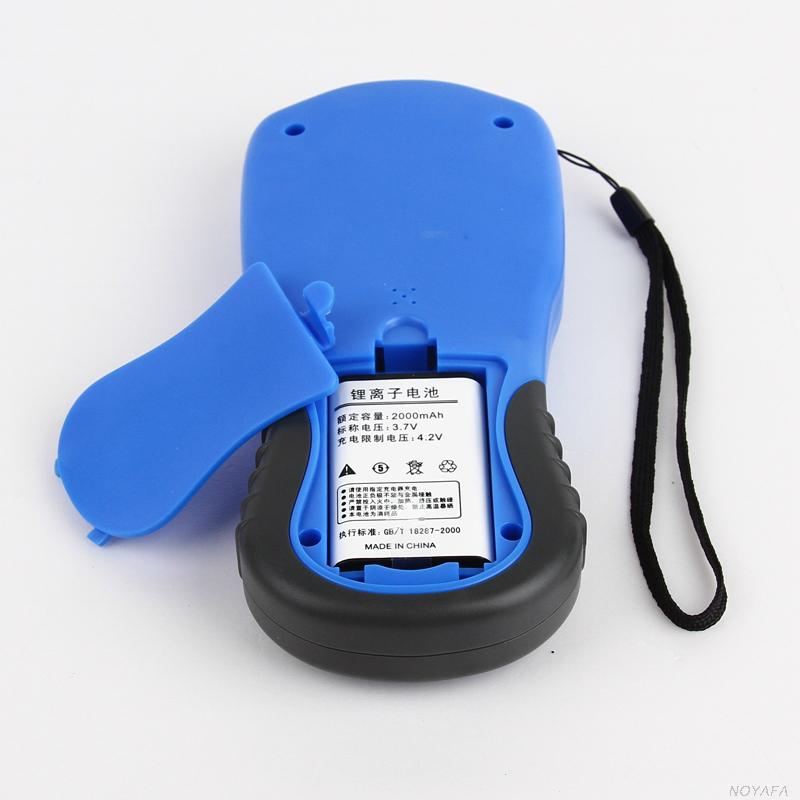

8.2 pcs of 3.7V/ 2000mAh batteries included
Benefits:
1. Can save and export 99 historical data and figure track.
2. Low battery reminder and auto-off time adjustable.
3. Measure barometric pressure
4. Analysis of satellite signal
5. currency detection, lighting and background light and canlender
6. Unit and unit price can be set up
Type |
Functions |
NF-178 |
NF-188 |
NF-198 |
hardware performance |
Satellite system |
GPS single-star |
The Dipper+GPS double- star |
The Dipper+GPS double- star |
Positioning accuracy |
1m |
0.5m |
0.5m |
Main functions |
Display |
Area/length trajectory |
Area&length trajectory |
Area&length trajectory |
Area accuracy |
97% |
98% |
99% |
Testing type |
flat ground |
flat ground,slope |
flat ground,slope,latitude |
Testing mode |
Testing mode |
Manual/Auto |
Manual/Auto |
Manual/Auto/Vehicle |
additional function |
currency detection / lighting /canlender |
OK |
OK |
OK |
Mu setting |
|
OK |
OK |
Unit/unit price setting |
OK |
OK |
OK |
Strengthen function |
satellite signal analysis |
|
|
OK |
barometric pressure |
|
|
OK |
Vehicle setting |
|
|
OK |
Power supply |
LCD screen |
2.2 inch black-white screen |
2.8 inch color screen |
2.8 inch color screen |
Power |
lithium battery 3.7V 1000mA |
lithium battery 3.7V 2000mA |
lithium battery 3.7V 2000mA |
Size |
|
|
|
|
Weight(with battery) |
|
|
|
|
Other indexes |
working temperature |
-10℃-+50℃ |
working humidity |
30%-70% |
